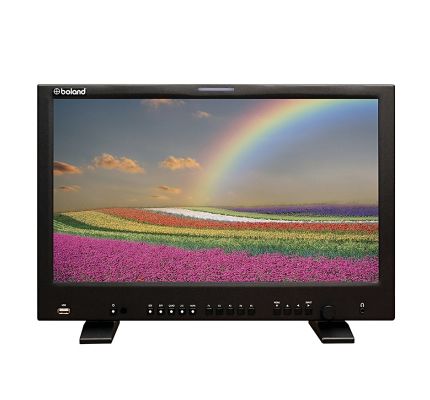

Boland 4K17-HDR 17" 4K Pro HDR-Monitor
Artikelnummer: 100000392617" | 3840×2160 / 300nit / 12G SDI / HDMI / Quad Multi-View
Verfügbar in etwa 15-20 Werktagen.
5.230,05 €
4.395,00 €
- Mehr 4K HDR-Serie
- Mehr Boland
Andere Kunden interessierten sich auch für ...
Downloads
Boland 4K17-HDR 17" 4K Pro HDR-Monitor
Produktmermale:
• 12G SDI Single Link, 3G SDI x 4 Quad Link
• HDMI 2.0
• Farbräume: 2020, P3, 709, 601, EBU
• SMPTE ST 2084 PQ und Hybrid Log Gamma
• Simultaner Farbvergleich von zwei Farbräumen
• Auto-Sense liest automatisch den HDR-Typ und passt die Anzeige an
• Import benutzerdefinierter LUTs via USB
• Kamera-Log-Konvertierung: Log C, SLog2, SLog3, Log Loop-out
• Integrierter Quad-Multi-View (SDI 4 Kanal)
• Wellenform (Standard und HDR), Vektorskop, Audiopegel/De-embed
• Fokus-Assistent, False Color, Fast Mode, Blende
• Zeitcode, H/V-Verzögerung, Marker, multiple Seitenverhältnisse
Technische Daten
| Active Area (Diagonal): | 17" |
| Modes | |
| High & Standard Definition Video Modes: | 4096×2160(23.98/24/25/29.97/30/50/59.94/60p), 3840×2160(23.98/24/25/29.97/30/50/59.94/60p), 2048x1080p(24/25), 1920x1080p(50/60/30psf/25psf/24psf/30/25/24), 1920x1080i(60/59.94),1920x1080i(50/59.94/60), 1280x720p(24/25/30/50/59.94/60); HDMI: 720p / 1080p / 2160p, 480i(59.94),576i(50) Digital, VESA VGA, DVI/HDMI |
| Inputs | |
| Digital Video Inputs(SDI): | 12G / 3G / HD SDI (SMPTE ST 2082 /SMPTE 259M/292/296) |
| Digital Video Inputs(HDMI): | up to 2160p HDMI |
| Picture | |
| Aspect Ratios: | Full Screen, 16:9, and other wide aspect ratios |
| Pixel (RGB Trio) Arrangement: | 3840 H x 2160 V Pixels |
| Pixel (RGB Trio) Pitch, Depth: | 0.09945 mm x 0.09945 mm 1.07 Billion colors 10bit |
| Brightness, typical, 0° | 300 cd/m2 |
| Contrast Ratio, 0° | 800:1 |
| Color Processor: | 16 bit color Processor |
| Viewing Angle, contrast>10:1 | R/L 178(Typ.), U/D 178(Typ.) |
| Controls | |
| User Controls: | Multi-Button Board options |
| Remote Controls: | IR, TCP/IP, RS-422, RS-232 |
| Light | |
| Light Source (standard): | Light Emitting Diode (GBr LED) Backlight system |
| LED Life: | 30,000 hrs |
| Connectors | |
| Video Connectors: | BNC x 8 12G /3G SDI, Composite, YPbPr; SFP socket |
| HDMI Connectors: | HDMI 2.0 |
| Power | |
| DC Power: | 12 VDC ±10%, |
| DC Connector: | XLR-5M (pin 1,2=Gnd, pin 4,5=+volts) |
| AC Power (detached power supply included): | 100-240 VAC, 50/60 Hz |
| AC Power Connector: | IEC 320-C14 3 pin Male |
| Display | |
| Weight: | 14lbs |
| Operating (full spec): | 0~+50°C, no condensation, 0~10,000 feet (3,048m) |
| Storage: | -20~+60°C, no condensation, 0~40,000 feet (12,192m) |
